DESCRIPTION OF ACME RAILINGS MATERIALS



INDUSTRY STANDARD

This is the type of rail most shops offer with balusters welded directly

to the cap rail (no sub-channel)

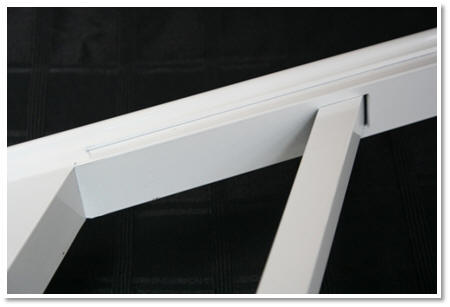

This is OUR RAIL

The balusters are welded to a sub-channel which is welded to the cap rail.

We feel this system produces a stronger more durable rail system as well as offers

greater options in rail design.











ALUMINUM IS ONE OF THE MOST RECYCLED METALS IN THE WORLD.

NEARLY 95% OF ALUMINUM IS RECYCLED

(USING 90% LESS ENERGY TO PROCESS)

THE STAINLESS STEEL HARDWARE HAS AN EQUALLY

IMPRESSIVE RECYCLING RATE.



POWDER COATING OFFERS A FINISHING PROCESS WITH MINIMAL ENVIRONMENTAL IMPACT.

IT PRODUCES NO V.O.C.’S IN ITS APPLICATION AS WELL AS CURING.

IN MOST CASES THE UNUSED POWDER IS RECYCLED WITHIN THE FINISHING SYSTEM AND

IF NOT IT IS LAND FILL SAFE. ADDITIONALLY WE USE A NON-CHROME CONVERSION COAT PRIOR TO POWDER COATING



ALL RAILINGS ARE FULLY WELDED AND FABRICATED FROM ALUMINUM WITH A POWDER COATED FINISH AND STAINLESS STEEL HARDWARE



BASIC RAIL COMPONENTS:  2 INCH WIDE ORNAMENTAL CAP RAIL (OTHER SHAPES   AVAILABLE IN OUR DECK RAIL LINE)

                                                   1 1/4 INCH SQUARE POSTS (1 1/2 INCH-3 INCH SQUARE IN OUR  PREMIUM LINE)

                                                   1 1/4 INCH CHANNEL (1/2 INCH DEEP SUB-CHANNEL, 3/4 INCH  DEEP LOWER CHANNEL)

                                                   3/4 INCH SQUARE BALUSTER

                                                  ALL HARDWARE IS STAINLESS STEEL WITH P.V.C. WASHERS TO

                                                  PROTECT POWDER COATED FINISH

                                                  DECORATIVE COVER FLANGES ON ALL POSTS



OPTIONAL COMPONENTS: 1 INCH SQUARE AS WELL AS  TURNED AND FORGED BALUSTERS

                                                  BALUSTER MOUNTED BUCKLES

                                                  VARIOUS HAND FORGED SCROLLS

                                                  GLASS AND CABLE INFILL PANELS



FINISH: ALL RAILS ARE POLYESTER POWDER COATED OVER A NON-CHROME  CONVERSION

               COAT (ENVIRONMENTALLY FRIENDLY AS WELL AS INCREASED FINISH LONGEVITY)



INSTALLATION: RAILS MOUNTED ON WOOD AND COMPOSITE DECKING WITH WELDED

                              FLANGES AND STAINLESS STEEL HARDWARE (SILICON SEALANT ON DECKS

                              OVER LIVING SPACES)

                              RAILS MOUNTED ON MASONRY ARE CORED DRILLED (4 INCH DEEP) AND

                              SET IN EITHER NON SHRINKING GROUT OR MINERAL LEAD WITH COVER

                              FLANGE  TO PROTECT GROUT/MINERAL LEAD FROM STANDING WATER.
